VLA-REPLICA Setup Guide

Back to project page

Start here

This documentation is organized into separate pages so the setup flow is easier to follow:

Overview & prerequisites

VLA-REPLICA is a low-cost, reproducible real-world benchmark for evaluating vision-language-action policies on tabletop manipulation tasks. It uses an SO-101 follower arm, a top RealSense camera, and a wrist RGB camera inside a standardized light box setup.

  • Estimated setup time: about 1 hour for the core software + calibration workflow.
  • Required background: none; the guide is written for non-experts.
  • System requirements: Our system utilizes an i9-10900X, 64GB RAM, and Nvidia A5000 (24GB VRAM). At least 24GB VRAM is recommended for real-time VLA inference, especially with pi0/pi0.5.

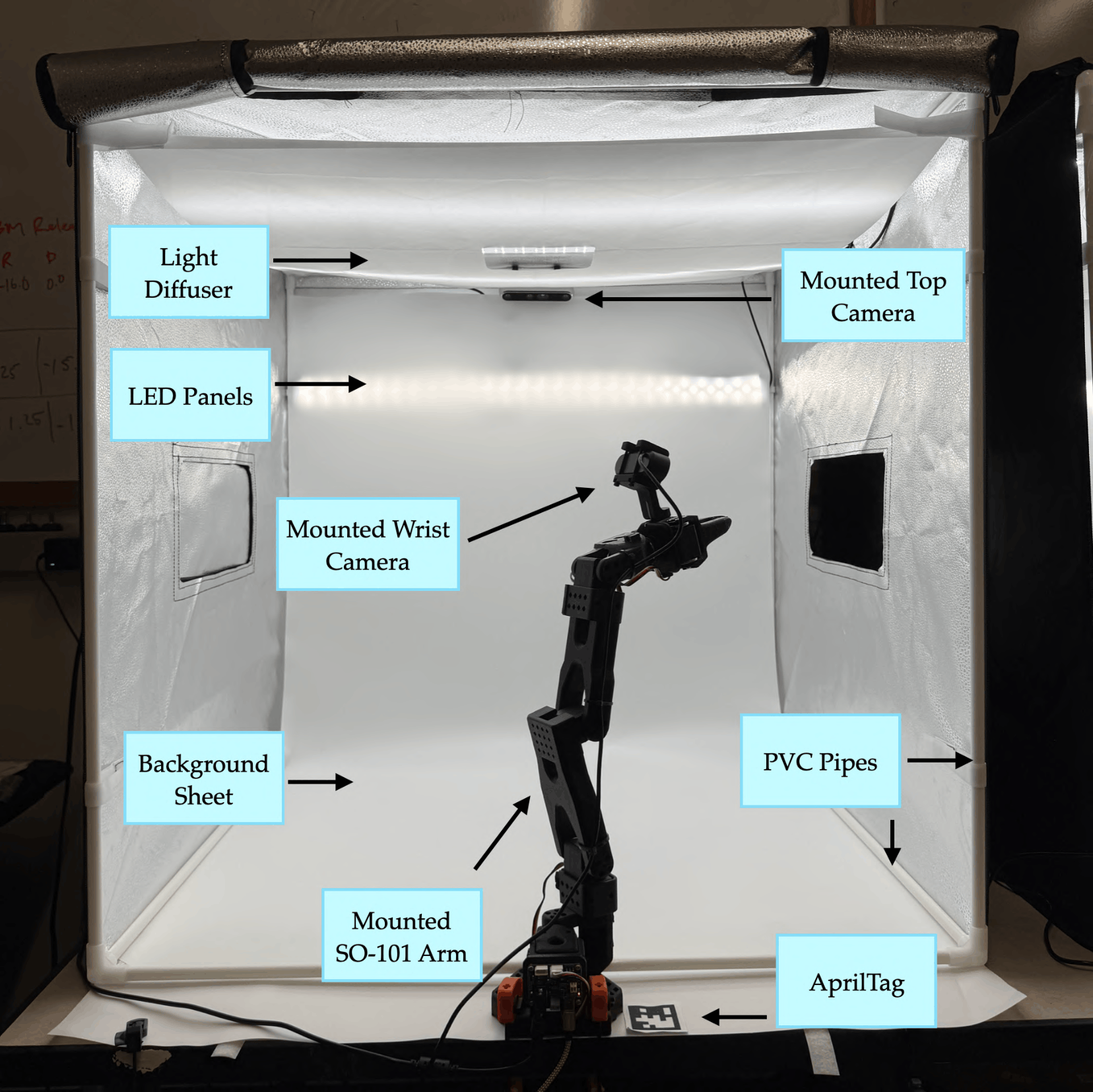

System overview diagram
Benchmark environment. Physical workspace showing the SO-101 follower arm, 32×32 in light box, LED panel, white background sheet, and AprilTag.

What is covered

This guide covers the full workflow from hardware assembly through policy evaluation:

  1. Gather the hardware and printed parts.
  2. Assemble the cameras, light box, and SO-101 platform.
  3. Install software and find device indices.
  4. Calibrate the arm and cameras.
  5. Run benchmark evaluations and compare results.

Quick notes

  • Keep lighting, camera angles, and the background sheet consistent.
  • Follow the calibration targets exactly before evaluating policies.
  • Use the task reference and troubleshooting pages when setting up scenes.
