Evaluation script

Use the evaluation script benchmark.py to run a policy across predefined ID or OOD tasks, with predefined reference images. Refer to the table below for all CLI flags.

Currently, the script supports the following models: {act,smolvla,dit,xvla,pi0,pi05}. Support for other VLA models will arrive soon. Feel free to modify the script to implement other VLA models of your liking.

Inside your virtual environment, run:

python benchmark.py \
  --policy-type pi0 \
  --policy-path lerobot/pi0_base \
  --policy-from-hub \
  --run-all-tasks \
  --task-subset ID \
  --iterations 5 \
  --eval-follower-calib-dirs calibration/robots/so101_follower \
  --eval-follower-ports /dev/ttyACM1 \
  --eval-follower-ids so101_follower_arm \
  --eval-top-indexes 4 \
  --eval-wrist-indexes 14 \
  --reset-mode fixed \
  --reset-action-file arm_reset.json

Flag	Description
--policy-type <model>	Selects the policy family to evaluate. Currently supported models: {act,smolvla,dit,xvla,pi0,pi05}
--policy-path <path>	Hugging Face repo ID or local path for the policy checkpoint.
--policy-from-hub	If --policy-path directs to a Hugging Face repo ID, include this flag. Loads policy from Hugging Face Hub instead of local directory.
--run-all-tasks	Runs evaluation across all 10 VLA-REPLICA tasks from task config, instead of single task.
--task-subset <ID or OOD>	When using --run-all-tasks, restricts evaluation to ID or OOD task subset.
--iterations <number>	Number of evaluation iterations per task (we used 5 in the paper).
--eval-follower-calib-dirs <path>	Follower calibration directory. (default: calibration/robots/so101_follower).
--eval-follower-ports <serial port>	Serial port for the follower robot (e.g. dev/ttyACM1)
--eval-follower-ids <id>	Robot ID for the follower arm. (default: so101_follower_arm)
--eval-top-indexes <index>	Top-camera index for the active arm.
--eval-wrist-indexes <index>	Wrist-camera index for the active arm.
--reset-mode fixed	Uses a fixed reset action instead of teleoperated leader reset (we enabled this for the paper).
--reset-action-file <path>	JSON file containing the normalized reset action vector required when --reset-mode fixed is used. (default: arm_reset.json)

Evaluation process

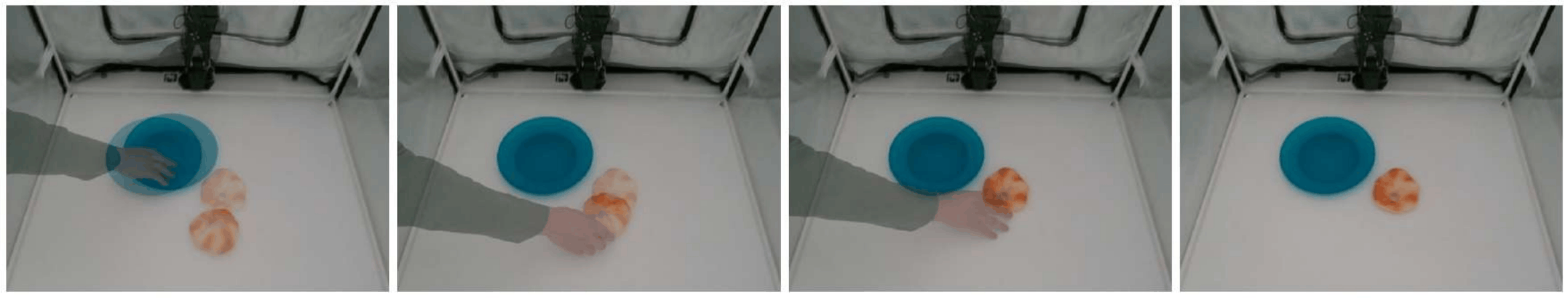

1. After the script loads the corresponding policy and connects successfully to the followers, the follower arm will move to a consistent start position (predetermined in arm_reset.json). An openCV GUI will pop up, overlaying the live video feed from the top camera with the proper test scene (i.e. predefined object placements) for that task.

2. Grab the corresponding objects needed for that scene (i.e. red plate and bread A for the first task) and then move the objects to their reference image positions so that the live camera and overlay image are identical to each other.

   •

3. When the live video feed and overlay image match almost exactly, press Enter on the keyboard to start policy inference.

   • During policy evaluations for the VLA-REPLICA paper, each policy is given 90 seconds to complete the task before the iteration ends.
   • If the policy completes the task before 90 seconds, press right arrow (➜) to skip to the setup phase of the next iteration. The SO-101 arm will reset back to the start position.
4. Log success and/or failure behavior for each iteration corresponding to that specific task. The full list of tasks and criteron are listed below.

ID versus OOD evaluation

• ID tasks use scene layouts close to the training distribution to see how well the model learns.
  • There are 10 ID tasks total, with 5 variants each, for a total of 50 ID iterations.
• OOD tasks test new colors, counts, or objects to test how well the model generalizes generalization.
  • There are 8 ID tasks total, with 5 variants each, for a total of 40 ID iterations.

List of Tasks & Success Criterion

The full list of tasks is located under Task Reference

Task	Goal	Success condition
Put bread on plate	Place the correct bread on the correct colored plate	Bread is resting on the target plate and the arm returns home
Put bowl on coaster	Place the correct bowl on the correct coaster	Correct bowl is on correct coaster and the arm returns home
Stack blocks	Stack the target block on the target block	Top block remains in contact for more than 2 seconds
Fold towel	Fold the towel in half	Edges are lifted and folded by more than 50%
Open oven	Open the oven door	Door stays open for 2+ seconds
Clean whiteboard	Wipe the board with the eraser	Eraser wipes 2+ times and is placed next to the board
Pour pepper	Pour the required number of shakes	Correct number of shakes poured and object returned
Lift bowl	Lift the correct bowl the required number of times	Correct lifting count is completed
Press button	Press the button the required number of times	Correct number of presses completed
Collect blocks	Put all blocks into the correct box	All blocks are in the target box and the arm returns home
